Feig - High Frequency Readers / Antennas / Modules |
|
|
HF 8 Channel Multiplexer |
|
ID ISC.ANT.MUX
The 8 channel Multiplexer ID ISC.ANT.MUX-A facilitates switching between RFID antennas with an operating frequency of
13.56 MHz. With one Multiplexer several single antennas and gate solutions can be operated with only one reader.
Any of the eight Multiplexers outputs can be assigned to both inputs by jumper adjustment.
In addition it is possible to connect further Multiplexers with Multiplexers already in use to raise the number of possible antenna
connections.
- Communication between reader and multiplexer via antenna cable
- Multiplexer outputs are controlled by the reader, a host or digital inputs
- Two independant reader input channels for variable antenna applications

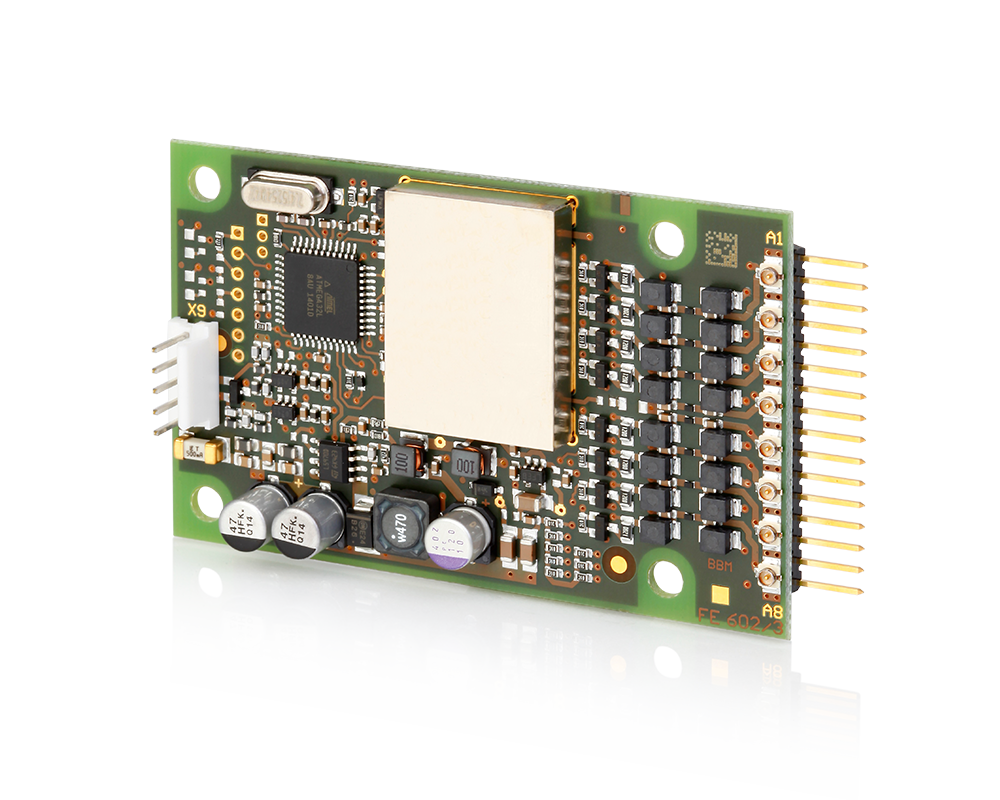

- Also available as 8 channel MUX Module or 4 channel MUX Module
|
|
|
|
|

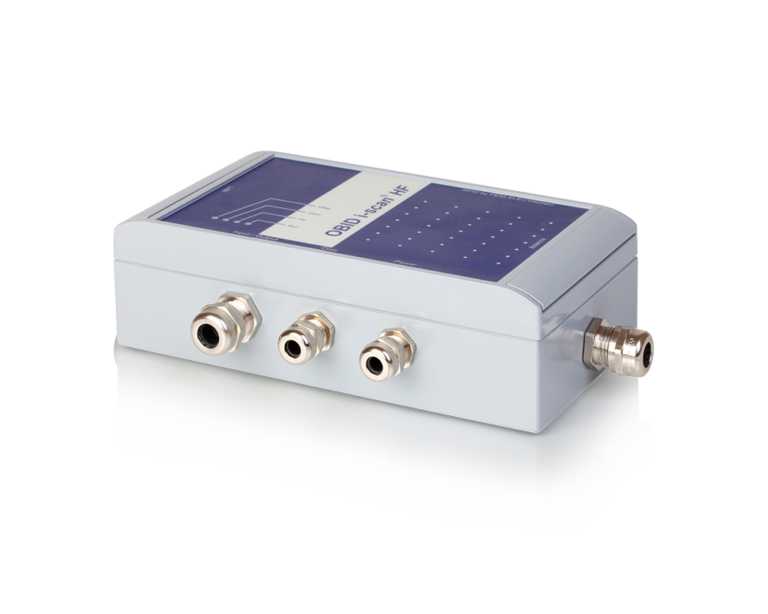

HF Long Range Reader |
|

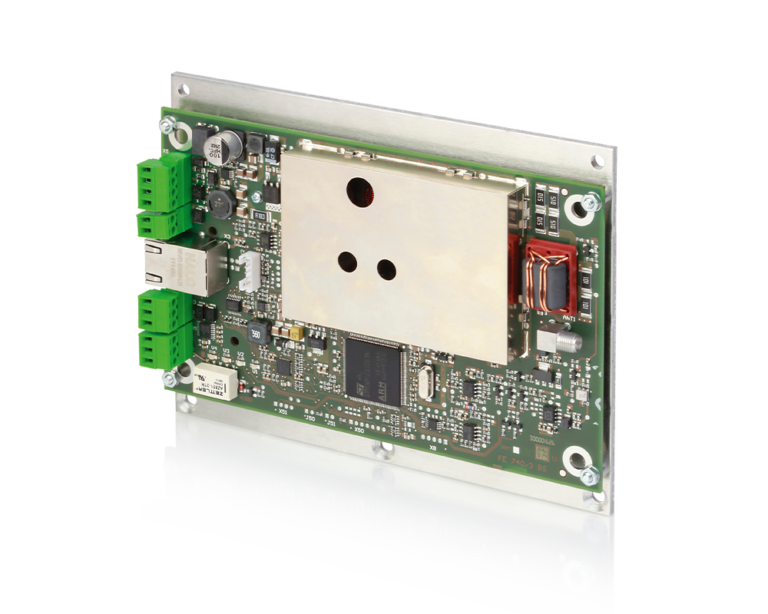

ID ISC.LR(M)1002-E
The HF Long Range Reader ID ISC.LR(M)1002-E identifies transponders according to ISO 15693 and HF Gen 2 with an operating frequeny of 13,56 MHz. The combination of powerful device and low price leads to an optimal cost-performance ratio.
- Powerful reader for a wide range of applications
- Ideal for retail, industry and logistics
- Different interfaces: Ethernet, USB, RS232
- 4 different reader modes
|
|
|
|
|
Dynamic Antenna Tuner |
|
ID ISC.DAT
The Dynamic Antenna Tuner ID ISC.DAT is designed for automatic tuning and retuning of RFID Long Range Antennas with an operating frequency of 13.56 MHz.
The parameters for setting the antenna are measured on the board under operating conditions.
The antenna tuner is also able to disconnect the antenna circuit through an electronic switch up to a certain power.
- Easy "Plug & Play“
- Automatic tuning and retuning of HF Long Range Antennas without additional tuning devices
- Tuner is driven via HF connection
- Parameters or calibration status can be sent to the host via HF connection
|
|
|
|
|
HF 4 Channel Multiplexer |
|
ID ISC.ANT.MUX.M4
The 4 channel Multiplexer Module ID ISC.ANT.MUX-M4 facilitates switching between RFID antennas with an operating frequency
of 13.56 MHz. With one Multiplexer several single antennas and gate solutions can be operated with only one reader.
The Multiplexer is controlled via the antenna cable connected with the reader. An additional connection to the Multiplexer is not
necessary which guarantees an easy installation.
- Communication between reader and Multiplexer via antenna cable
- Multiplexer outputs are controlled by the reader or the host system
- Non-wearing electronic switching of the outputs
- High switching speed (< 1ms)
|
|
|
|
|
HF-Antennas for RFID Proximity Reader |
|

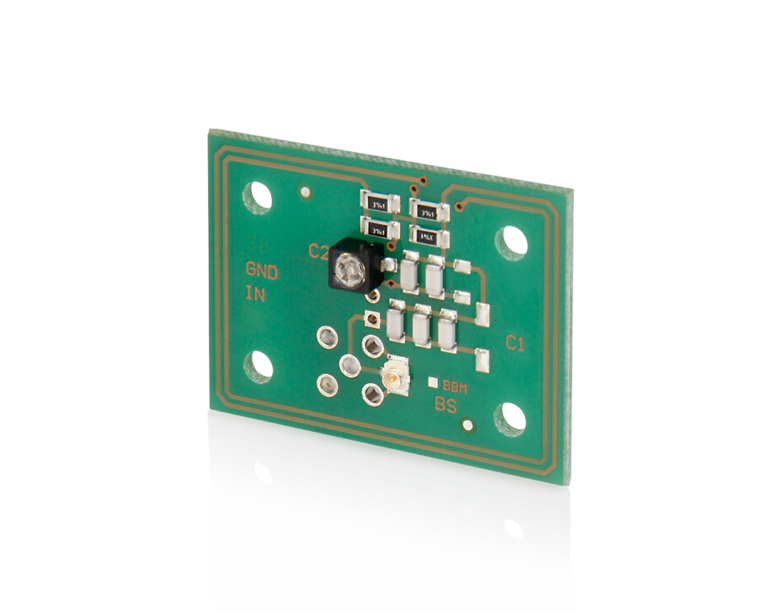

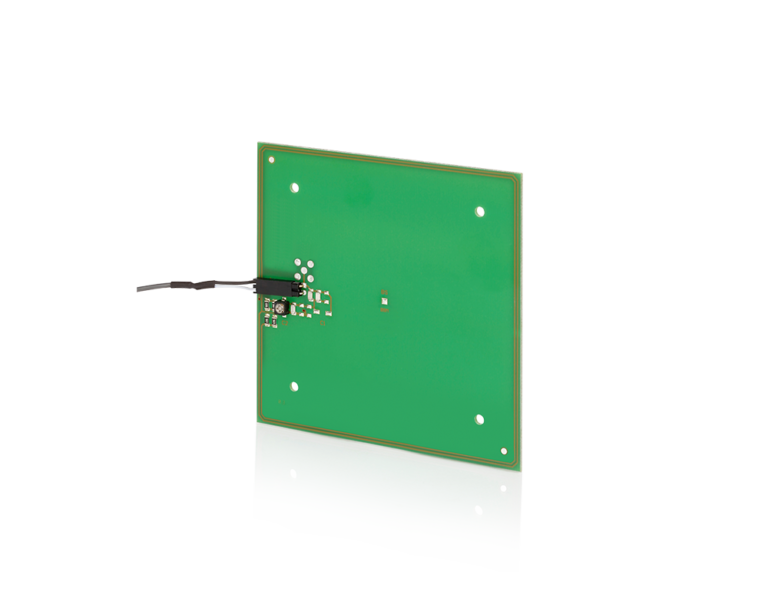

ID ISC.ANT40/30 & ID ISC.ANT100/100
The external antennas ID ISC.ANT40/30 and ID ISC.ANT100/100 could be used with all supported HF reader modules of FEIG ELECTRONIC
- RFID antenna - Impedance: 50 O
- Frequency: 13.56 MHz
- Data transfer rate up to 424 kbits/s
- Reading distance up to 5.87 in (14 cm) (ID ISC.ANT100.100)*
|
|
|
|
|
FEIG ISO 18000-3M3 Reader |
|
EPC Global Gen2 HF RFID
- Reads 700 Tags / sec
- Dense Tag Population
- ISO 15693 compatible
- Healthcare
- Pharmaceutical Supply Chain
- Document Tracking
- Casino Applications
|
|
|
|
|

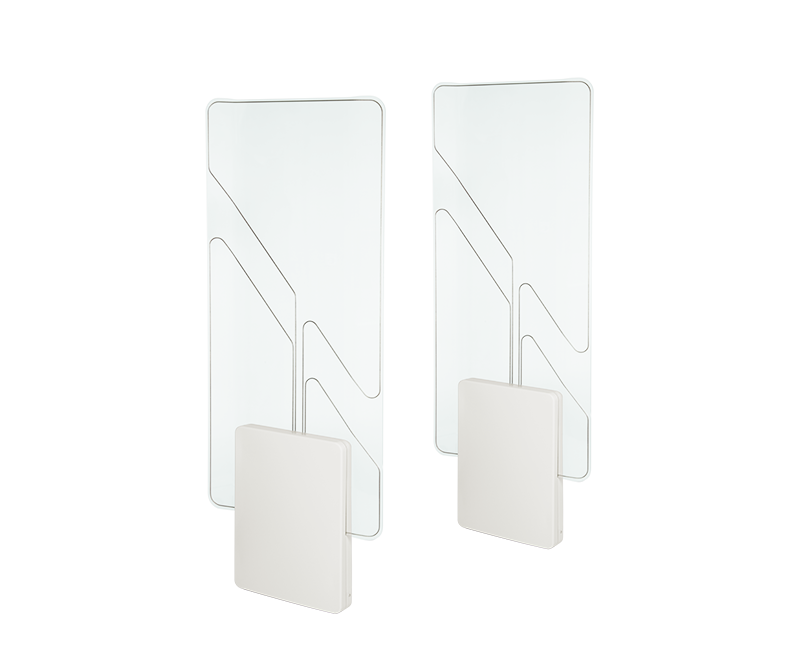

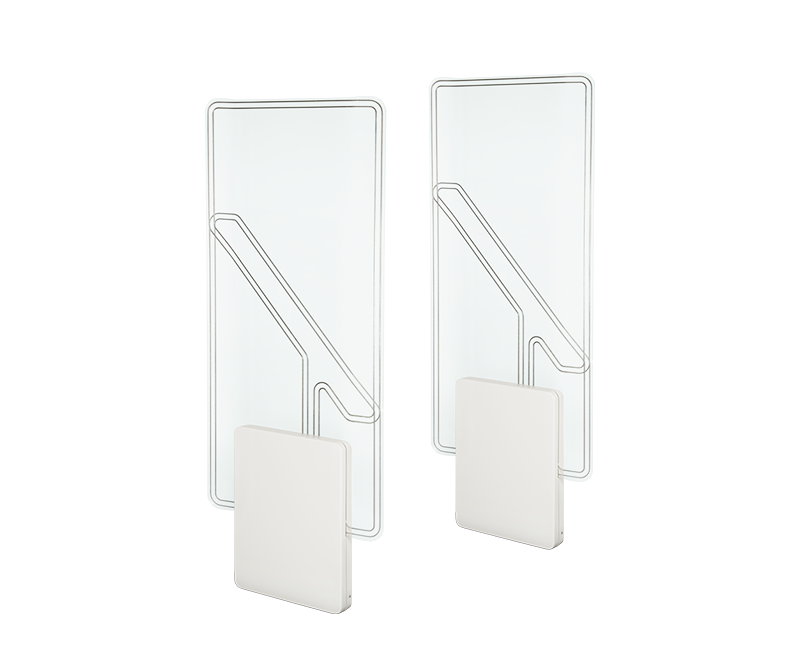

FEIG i-scan® Crystal Gate |
|
ID ISC.ANT1690/600 Crystal Gate
- Dimensions: 600 x 1700 x 72 mm +/- 5 mm (BxHxT)
Features:
- Excellent Aisle Width (up to 1.20 m)
- Patentierted Configuration
- Transparent Design
- Easy Installation
- Integrated optical and acoustic alarm set
- Optional Functions
- Flexible IT Integration
- International Approvals
|
|
|
|
|
FEIG i-scan® HF Mid Range Antennas
for deployment with FEIG i-scan® HF Mid Range Reader for identification of 13.56 MHz tags |
-
Variable deployment due to different antenna concepts (Pad Antenna, Industrial Antennas)
-
The deployment together with OBID i-scan HF multi-tag readers allows to read different ISO15693/ISO18000-3 tag types simultaniously
|
|
ID ISC.ANTS370/270 Shielded HF Pad Antenna
- Dimensions : 376 x 276 x 27mm (LxBxH)
- Suitable readers : ID ISC.MR102 sowie dessen Vorgänger ID ISC.MR101
- Antenna connection : Coaxial cable RG58 with SMA plug; approx. 230 mm long
- 1 LED to indicate the current operation status
Features:
- More than 30 cm read range
- Modern design
- No tag reading outside of the antenna area
- Optical Feedback via LED
- No detuning of the antenna when installing on metal or rather conductive material

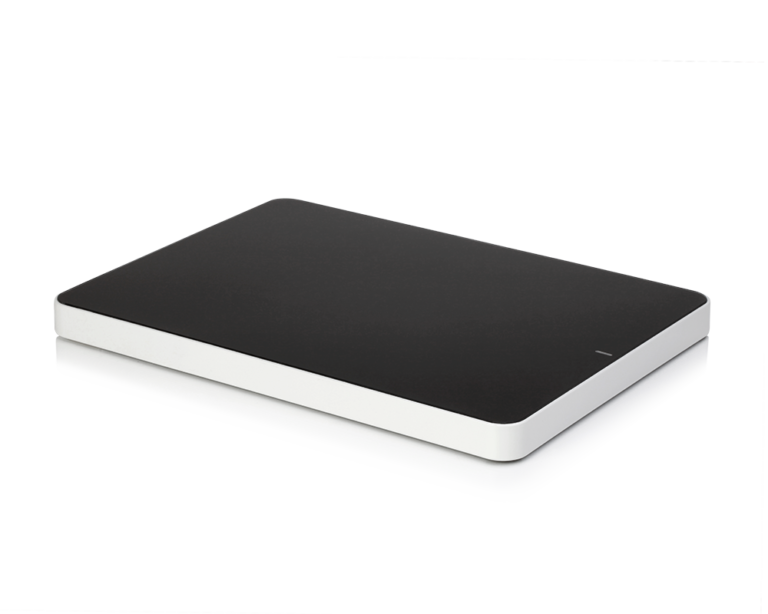

- Available as external antenna or with integrated reader as ID ISC.SPAD102
|
|
|

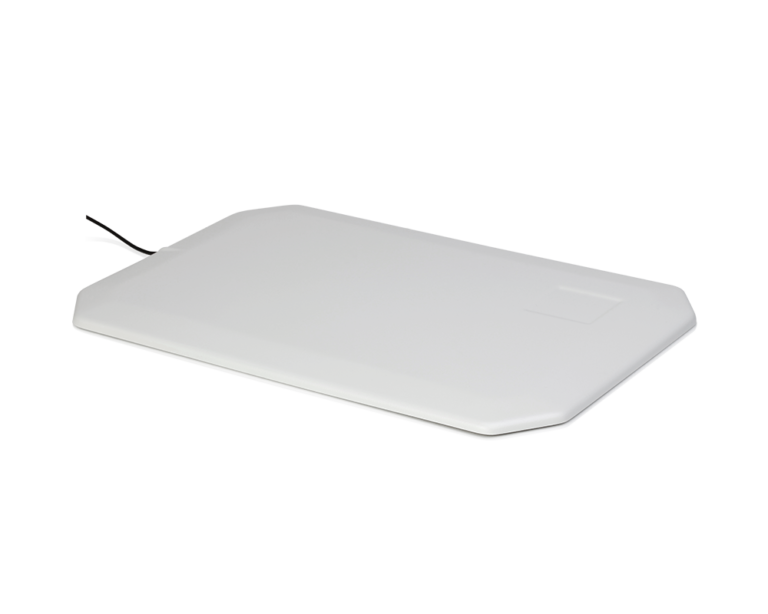

ID ISC.ANT340/240 Pad Antenna for indoor applications
(suitable to every desk or other document tracking issues)
- dimensions : 337x237x8,3mm / 13.26 x 9.33 x 0.32 inch (WxHxD)
- works with every Mid Range Reader of our product range with a maximum transmitting power of 1 W
- Antenna Connection : RG58 koax-cabel , SMA-connector
Special Features:
- designed for desktop applications
|
|
|
ID ISC.ANTH200/200-A Hand-held Antenna
- dimensions : 460x200x160mm / 18.11 x 7.87 x 6.3 inch (WxHxD)
- works with each Mid Range Reader of our product range
- antenna connection: SMA-Connector (50 Ohm)
Special Features:
- reading range between 30 and 40 cm
- 3.6 m connecting cable
|
|
|
|

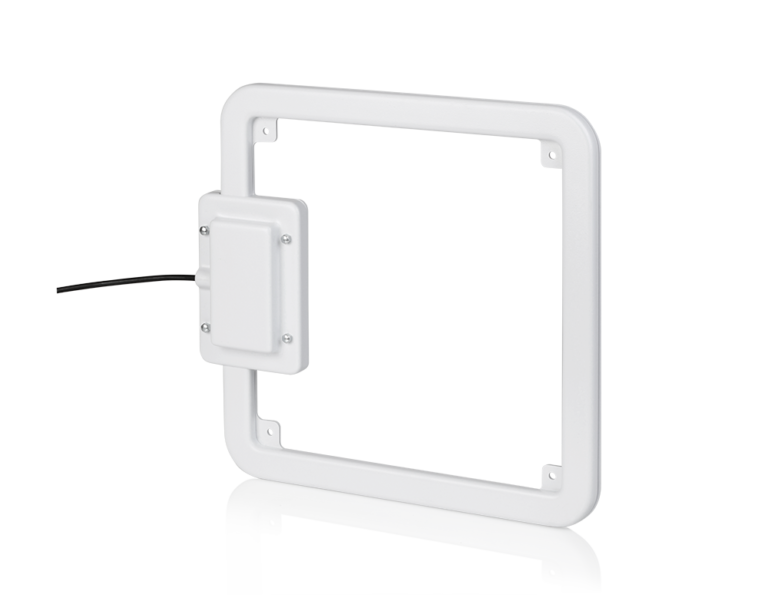

ID ISC.ANT310/310-A Loop Antenna
(suitable for Mid Range- and Long Range Applications)
- Dimensions: 318 x 338 x 30mm / 12.4 x 13.18 x 1.17 inch (LxWxD)
- works with all Mid Range Readers & all Long Range Readers
- Antenna connection: Koax cable RG58, SMA plug
Features:
- Transmitting power up to 8 W
- Protection class IP65
- Manual alignment electronics for optimal adjustment to different surrounding conditions
|
|
|
FEIG i-scan® HF Mid Range Readers |
FEIG i-scan HF Mid Range Readers are suitable for applications within the tracking and tracing of documents and products, conveyor systems and automatic production processes. In comparison to the FEIG i-scan Proximity Readers, a higher performance in reading distance and interface availability is offered.
|
|

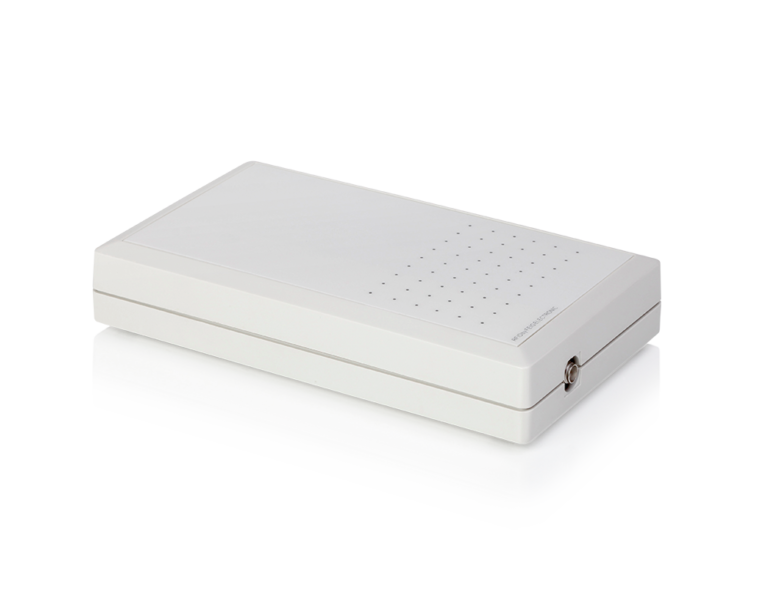

ID ISC.MR102-PoE Mid Range Reader
(for identification of 13.56 MHz transponders)
- Dimensions 145 x 85 x 31mm / 4.72 x 3.35 x 1.77 inch (WxHxD)
- Possible Antennas: Pad-Antenna 340/240 (Office) or Loop-Antenna 310/310 (Industrial)
- Interface: Ethernet (TCP/IP)
- Supply voltage: typical 12...24 V DC or Power over Ethernet
- Transponders: ISO15693, ISO18000-3-Mode1
Examples of use:
- Document tracking
- Rental applications
- Libraries
Special Features:
- Anti-collision function
- Scan Mode, FEIG ISO HOST Mode, Notification Mode
|
|
|
ID ISC.MR102-A Mid Range Reader
(for Identification of 13.56 MHz transponders)
- Dimensions 145x85x31mm / 4.72 x 3.35 x 1.77 inch (WxHxD)
- Possible Antennas: Pad-Antenna 340/240 (Office) or Loop-Antenna 310/310 (industrial)
- Interface: RS232
- Supply voltage: typical 12...24 V DC
- Transponders: ISO15693, ISO18000-3-Mode1
Examples of use:
- Document tracking
- Rental applications
- Libraries
Special Features:
- Anticollision-Function
- Scan Mode, FEIG ISO HOST Mode, Notification Mode

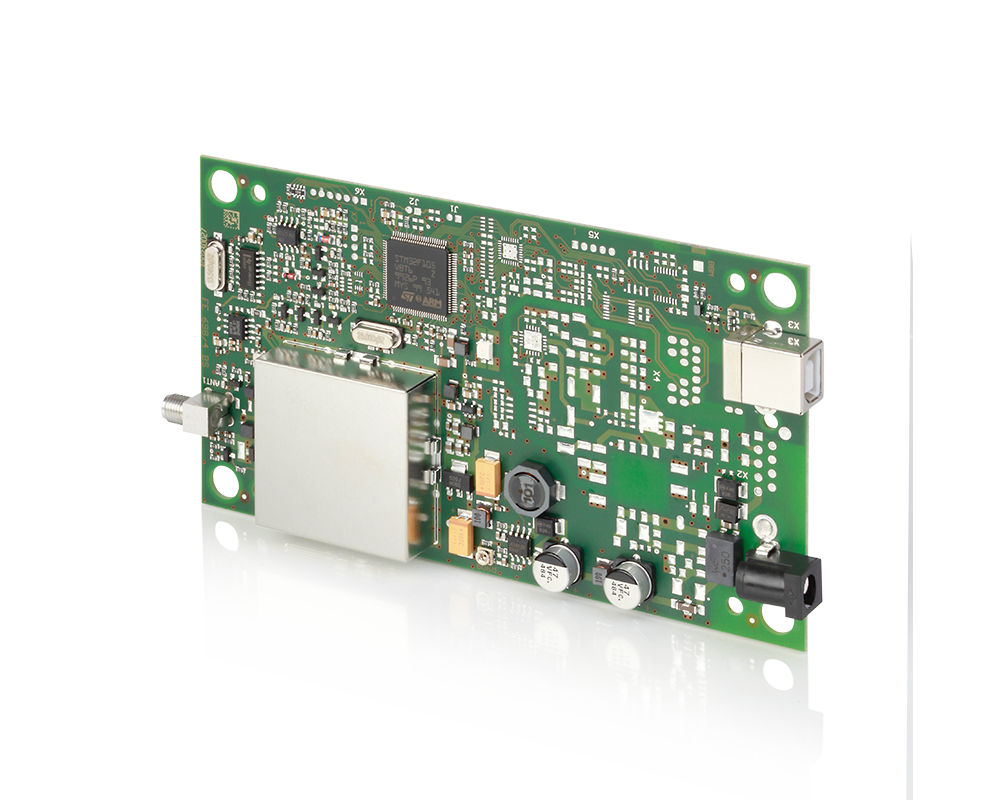

- Also available as Reader Module ID ISC.MRM102-A
|
|
|
ID ISC.MR102-USB Mid Range Reader
(for identification of 13.56 MHz transponders)
- Dimensions 145 x 85 x 31mm / 4.72 x 3.35 x 1.77 inch (WxHxD)
- Possible Antennas: Pad-Antenna 340/240 (Office) or Loop-Antenna 310/310 (Industrial)
- Interface: USB 2.0
- Supply voltage: typical 12...24 V DC / external power supply unit mandatory
- Transponders: ISO15693, ISO18000-3-Mode1
Examples of use:
- Document tracking
- Rental applications
- Libraries
Special Features:
- Anti-collision funktion
- Scan Mode, FEIG ISO HOST Mode, Notification Mode
- Also available as Reader Module ID ISC.MRM102-USB
|
|
|
ID CPR30-USB Mid Range Reader
(for identification of 13.56MHz transponders)
- 144 x 84 x 18mm (LxBxH)
- Integrated antenna
- Interface: USB 2.0
- Power supply: 5 V, USB Bus powered
- Supported transponders: ISO15693, ISO14443-A/-B
Examples of use:
- Document tracking
- Rental applications
- Libraries
Special Features:
- Anticollision Function
- Polling Mode
- Optional available with 2 SAM sockets
|
|
|
|
MR101-USB 13.56 MHz Mid Range Reader
|
For identification of 13.56 MHz transponders
Dimensions 145x85x31mm / 4.72 x 3.35 x 1.77 inch (WxHxD)
Possible Antennas: Pad-Antenna 340/240 (Office) or Loop-Antenna 300/300 (Industrial)
Interface: USB (12 Mbit)
Supply voltage: typical 12 V DC maximum 12-24V DC +/- 15%
Transponder: ISO15693, ISO18000-3-Mode1
Examples of use:
Document tracking
Rental applications
Libraries
Special features:
Anti-collision function
Scan Mode, FEIG ISO HOST Mode |
|
|
|
|
MR100-A (Has been replaced with MR 102) 13.56 MHz Housed Mid Range Reader
|
For identification of 13.56 MHz transponders
Dimensions 145x85x31mm / 4.72 x 3.35 x 1.77 inch (WxHxD)
Possible Antennas: Pad-Antenna 340/240 (Office) or Loop-Antenna 300/300 (industrial)
Interfaces: RS232 / RS485 (configurable)
Supply voltage: typical 12 V DC maximum 12-24V DC +/- 15%
Transponders: ISO15693, ISO18000-3-Mode1
Example of use:
Document tracking
Rental applications
Libraries
Special Features:
Anticollision-Function
Scan Mode, FEIG ISO HOST Mode |
|
|
|
|
PRH101-B 13.56 MHz Bluetooth Handheld Reader
|
For identification of 13.56 MHz transponders
Dimensions: 230x80x100 mm / 9.06 x 3.94 x 3.15 inch (WxHxD)
Integrated antenna
Interface: Bluetooth (Serial port profile)
Supply Voltage: rechargable battery powered (4 x AA - NimH)
Transponder: ISO15693, ISO18000-3-Mode1
Example of Use:
Document tracking
Rental applications
Library applications
Special Features:
Anti-collision function
Scan Mode, FEIG ISO HOST Mode |
|
|
|
|

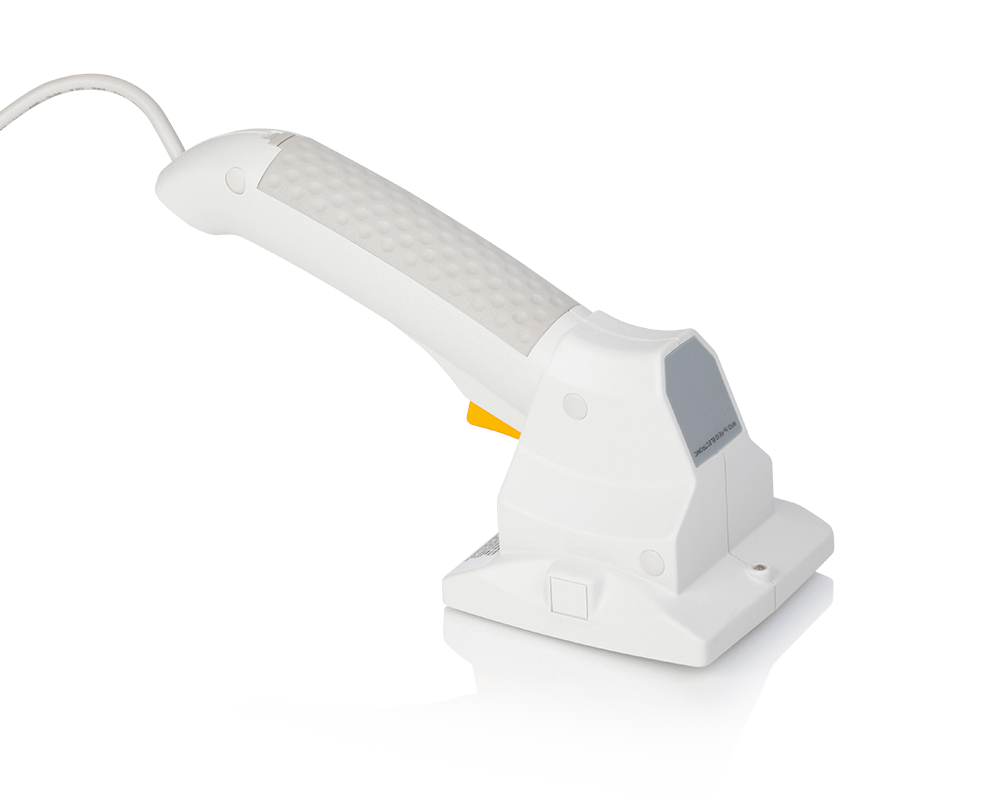

PRH101-A Proximity Handheld Reader
|
For identification of 13.56 MHz transponders
Dimensions: 230x80x100 mm / 9.06 x 3.94 x 3.15 inch (WxHxD)
With Integrated Antenna
Interface: RS232
Supply Voltage: 5V DC +/- 0.2 V regulated / via external power supply unit
Transponders: ISO15693, ISO18000-3-Mode1
Example of Use:
Document tracking
Rental applications
Library applications
Special Features:
Anticollision Function
Scan Mode, FEIG ISO Host Mode |
|
| |
|
PRH101-USB 13.56 MHz Hand-held Reader
|
For identification of 13.56 MHz transponders
Dimensions: 230x80x100 mm / 9.06 x 3.94 x 3.15 inch (WxHxD)
With Integrated Antenna
Interface: USB (12 Mbit)
Power Supply: USB High Powered Interface
Transponder: ISO15693, ISO18000-3-Mode1
Example of Use:
Document tracking
Rental applications
Library applications
Special Features:
Anti-collision function
Scan Mode, FEIG ISO HOST Mode |
|
| |
|

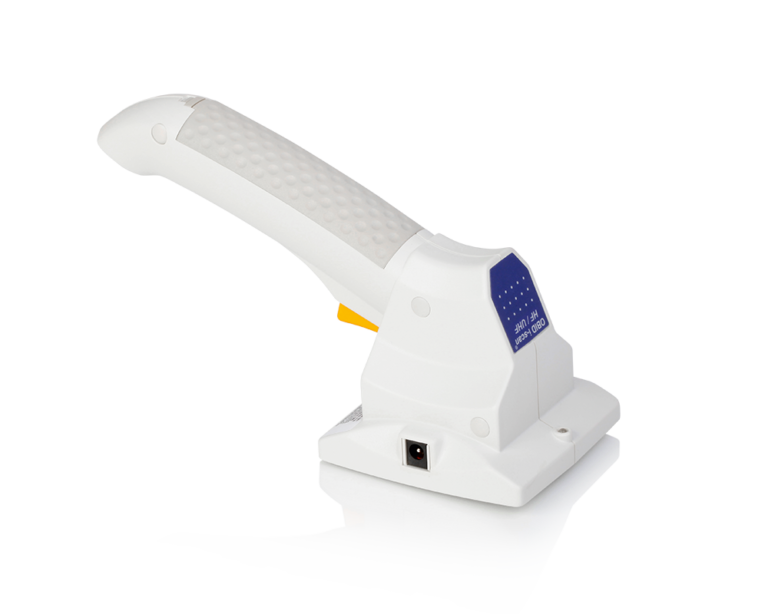

PRHD102 HF-/UHF Handheld Reader
|
Dimensions: 230x80x100 mm (WxDxH)
Two integrated antennas (HF and UHF)
Interfaces: Bluetooth (Serial Port Profile) or USB
Power supply: Bluetooth variant: Rechargable accumulators (4x AA - NimH);
USB variant: USB - High Powered Interface
Supported transponders: ISO15693, EPC Gen2 (optional ISO 18000-6-C)
Examples of use:
Single workstations
Goods inward inspection
Inventory
Features:
Low Power Mode for limitation of reading range
Anti-collision function
Scan Mode / FEIG ISO HOST Mode |
|
| |
|
PR101-A 13.56MHz Proximity Reader
(also available as module version) |
For identification of 13.56 MHz transponders
Dimensions: 145x85x31mm / 3.35 x 4.72 x 1.77 inch (WxHxD)
With Integrated Antenna
Interface: RS232 / RS485
Supply Voltage: Typical 12 V DC; Maximum 12-24V DC +/- 15%
Transponder: ISO15693, ISO18000-3-Mode1
Example of Use:
Document tracking
Rental applications
Library applications
Special Features:
Anticollision Function
Scan Mode, FEIG ISO Host Mode |
|
| |
|
PR101-USB 13.56 MHz Proximity Reader |
For identification of 13.56 MHz transponders
Dimensions: 145x85x31mm / 3.35 x 4.72 x 1.77 inch (WxHxD)
With Integrated Antenna
Interface: USB (12 Mbit)
Power Supply: 5V DC (via USB)
Transponder: ISO15693, ISO18000-3-Mode1
Example of Use:
Document tracking
Rental applications
Library applications
Special Features:
Anticollision-Function
Scan Mode, FEIG ISO Host Mode |
|
|
|
|
Multi-tag Proximity Reader
ID CPR02.10 (13.56 MHz) |
Vicinity-Proximity-Reader ID CPR02.10-AD / -B
The ID CPR02.10-AD /-B is designed as a wall-mounted device for contactless data exchange with common ISO14443-A & -B as well as
ISO15693 compliant transponders for applications like access control, time attendance and ticketing. |
|
| | |
|

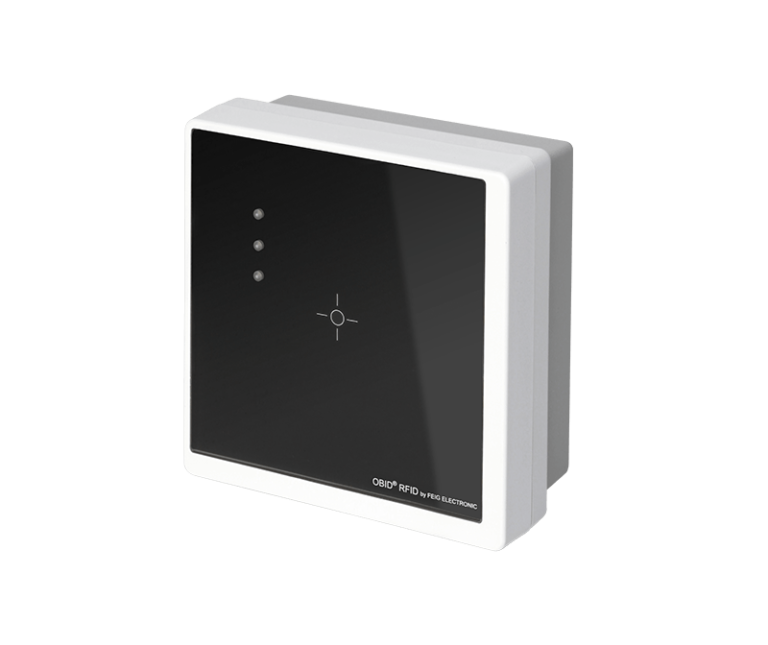

RFID Proximity Reader with Ethernet Interface
ID CPR50.10-E (13.56 MHz) |
The ID CPR50.10-E is designed as a wall-mounted device for applications like access control, time attendance and ticketing.
It supports transponders according to ISO14443-A & -B as well as ISO15693 and is able to communicate with NFCdevices.
Because of it´s Ethernet interface according to 10BASE-T / 100BASE-TX standard the reader is well suited for easy integration into an
existing LAN environment. The integrated Power over Ethernet (PoE) power supply provides for an easy and secure installation. |
|
|
| |
|
Multi-tag Reader ID CPR.03.20-CD |
Features:
*Multi-tag Reader for ISO-Tags 14443-A, -B and ISO 15693
*Suitable for indoor-and
outdoor operation (IP 65)
*Reader configuration can be changed with a ConfigCard on site
*Data-/Clock interface and
RS232-TTL |
|
|
| |
|
Desk Top Reader - ID CPR.04.P/AB-USB |
The desk top reader ID CPR.04.P/AB-USB supports transponders that comply to the ISO 14443-A and ISO 14443-B standard with a
data transfer rate of up to 848 kBit per second.
The reader is equipped with a high-speed, USB 2.0 interface providing a very fast data
transfer rate.
The ID CPR.04 guarantees the full support of ISO 14443-4 functionality with the T=CL protocol, simplifying the integration of
the reader. |
|
|
| |
|
Multitag-Desktop Reader
ID CPR40.30 (13.56 MHz) |
The ID CPR40.30-USB /-SUSB is designed as a desktop device for contactless data exchange with common ISO14443-A and
ISO14443-B compliant transponders.
In addition, the ID CPR40.30-SUSB is equipped with two SAM sockets.
Power supply and data exchange
with a computer or other equipment is carried out via the USB interface. |
|
|
|
Multi-tag Reader Modules
ID CPR (13,56 MHz) |
FEATURES:
5V- and 3.3V variants available
Also available as USB variant
Data rates up to 847 kBit/s
Low power consumption
Command Queue for explicit reduction of communication cycles between host and reader module
Supports NFC applications
|
|
|
|
|
Multi-tag Reader Module with 4 SAM Sockets
ID CPR44.02-4S (13.56 MHz) |
The Reader Module ID CPR44.02 - 4SCUSB is designed for contactless data exchange with passive ISO14443 - A and – B
compliant transponders as well as for communication with NFC devices (ISO 18092).
It supports mifare® classic Security. The small
dimensions and both alternatively usable interfaces (RS232-TTL and USB) allow an easy installation into terminals, housings and other devices.
|
|
|
|
|

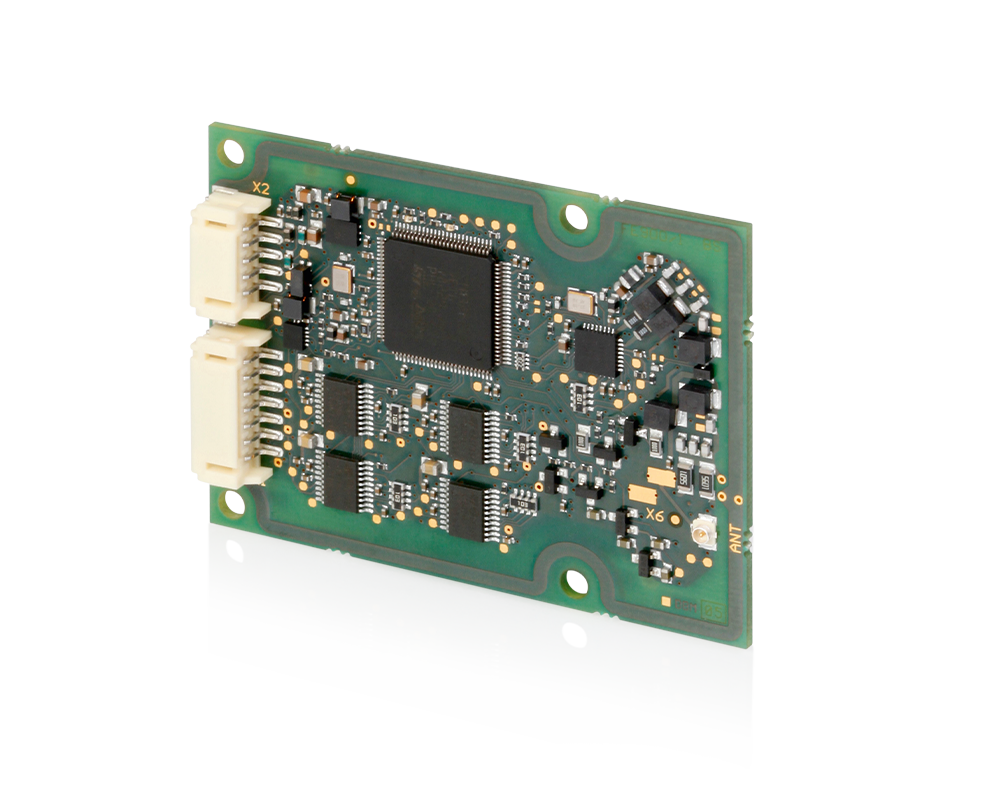

Multi-tag Reader Module with 4 SAM Sockets
ID CPR74 |
FEATURES:
* High End Performance.
* We can support NTAG213 and NTAG224 with CPR74 Feig HF reader.
* 4 SAM sockets (ID000 Format);tested according to EMVCo Contact Level 1.
* Prepared for EMVCo Contactless Level 1 certification.
* High density of integration / compact design.
* ISO 14443, ISO 15693, ISO 18000-3M3.
* Supports NFC applications.
* RS232-TTL and USB interface.
* Integrated High level support for mifare DESFireand mifare PLUS.
* Simultaneous operation with internal and externalantenna (integrated antenna multiplexer).
|
|
|
|
| |
|
