UPM Raflatac - UHF RFID Tags |
|
Ultra-high frequency (UHF) RFID systems provide longer operating distances and better read-rates compared to HF systems. In addition to retail, UHF systems are employed in various supply chain management applications.
The frequency used for ultra-high frequency (UHF) RFID systems varies between 860 and 960 MHz. UHF RFID systems operate between 902 and 928 MHz in North America, at 868 MHz in Europe and at 950 MHz in Asia (Japan).
UHF RFID systems are widely deployed due to RFID mandates from several large corporations, including international retailers like Metro and Wallmart, and the U.S. Department of Defense.

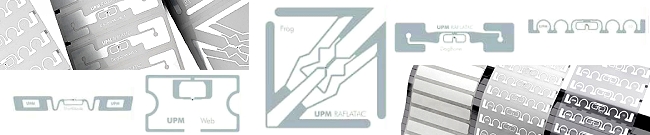

UPM Raflatac’s UHF range is comprised of tags and inlays in the following delivery formats:
* Tag: die-cut web with adhesive, paper face
* Wet inlay: die-cut web with adhesive, film face
* Dry inlay: continuous web, no adhesive |
|
Raflatac Dogbone (Dry Inlay) ( |
Protocol
EPC Class 1 Gen 2
Operating frequency
Global 860–960 MHz
Antenna size
93 x 23 mm / 3.7 x 0.9 inch |
DogBone key features
• General purpose high-end product for global Supply Chain Management. Best suited for pallets, cases and item-level use.
• Optimized for corrugated, plastic and highly detuning materials.
• Wal-Mart, DoD and METRO Group compliant inlay.
• Global top-performer
• 96-bit EPC memory | |
|
| | |
|
Raflatac Dogbone (Wet Inlay) |
Protocol
EPC Class 1 Gen 2
Operating frequency
Global 860–960 MHz
Antenna size
93 x 23 mm / 3.7 x 0.9 inch |
DogBone key features
• General purpose high-end product for global Supply Chain Management. Best suited for pallets, cases and item-level use.
• Optimized for corrugated, plastic and highly detuning materials.
• Wal-Mart, DoD and METRO Group compliant inlay.
• Global top-performer
• 96-bit EPC memory | |
|
| | |
|
Raflatac Frog (Dry Inlay) |
Protocol
EPC Class 1 Gen 2
Operating frequency
Global 860–960 MHz
Antenna size
68 x 68 mm / 2.7 x 2.7 inch |
Frog key features
• Orientation insensitive product for global Supply Chain Management. For pallets and cases.
• Best suited for use on corrugated materials and plastic.
• Optimal product for applications where inlay orientation cannot be controlled.
• Wal-Mart, DoD and METRO Group compliant inlay.
• 96-bit EPC memory | |
|
| | |
|
Raflatac Short Dipole (Wet Inlay) |
Protocol
EPC Class 1 Gen 2
Operating frequency
Global 860–960 MHz
Antenna size
92 x 11 mm / 3.6 x 0.4 inch |
ShortDipolex key features
• Cost-efficient, high performance product for global Supply Chain Management.
• ShortDipolex is suitable for corrugated materials and plastics.
• Wal-Mart, DoD and METRO Group compliant inlay.
• Typically converted into 4x6” labels.
• For pallets, cases and item-level use.
• Up to 240-bit EPC memory.
• 64-bit tag identifier (TID) including 32-bit unique serial number. |
|
|
| | |
|
Raflatac Short Dipole (Wet Inlay) |
Protocol
EPC Class 1 Gen 2
Operating frequency
Global 860–960 MHz
Antenna size
93 x 11 mm / 3.7 x 0.4 inch |
ShortDipole key features
• High performance product for global Supply Chain Management, with a cost-efficient, industry standard form factor.
• Best suited for use on corrugated materials and plastics.
• Optimal form factor for converting into 4” wide labels.
• Wal-Mart, DoD and METRO Group compliant inlay.
• For pallets, cases and item-level use.
• 96-bit EPC memory | |
|
| | |
|
Raflatac Short Dipole (Dry Inlay) |
Protocol
EPC Class 1 Gen 2
Operating frequency
Global 860–960 MHz
Antenna size
93 x 11 mm / 3.7 x 0.4 inch |
ShortDipole key features
• High performance product for global Supply Chain Management, with a cost-efficient, industry standard form factor.
• Best suited for use on corrugated materials and plastics.
• Optimal form factor for converting into 4” wide labels.
• Wal-Mart, DoD and METRO Group compliant inlay.
• For pallets, cases and item-level use.
• 96-bit EPC memory | |
|
| | |
|
Raflatac Web (Wet Inlay) |
Protocol
EPC Class 1 Gen 2
Operating frequency
Global 860–960 MHz
Antenna size
30 x 50 mm / 1.1 x 2.0 inch |
Webx key features
• The industry approved global Webx is a perfect match for apparel and footwear item-level applications.
• Orientation insensitive, excellent close coupling performance.
• Optimized read distance for the whole supply chain and point-of-sale (POS).
• Low energy consumption, ideal for handheld readers.
• User memory size up to 512 bit.
• 64 bit tag identifier (TID) including 32 bit unique serial number. |
|
|
| | |
|
Raflatac Web (Paper Tag) |
Protocol
EPC Class 1 Gen 2
Operating frequency
Global 860–960 MHz
Antenna size
30 x 50 mm / 1.1 x 2.0 inch |
Webx key features
• The industry approved global Webx is a perfect match for apparel and footwear item-level applications.
• Orientation insensitive, excellent close coupling performance.
• Optimized read distance for the whole supply chain and point-of-sale (POS).
• Low energy consumption, ideal for handheld readers.
• User memory size up to 512 bit.
• 64 bit tag identifier (TID) including 32 bit unique serial number. |
|
|
| | |
